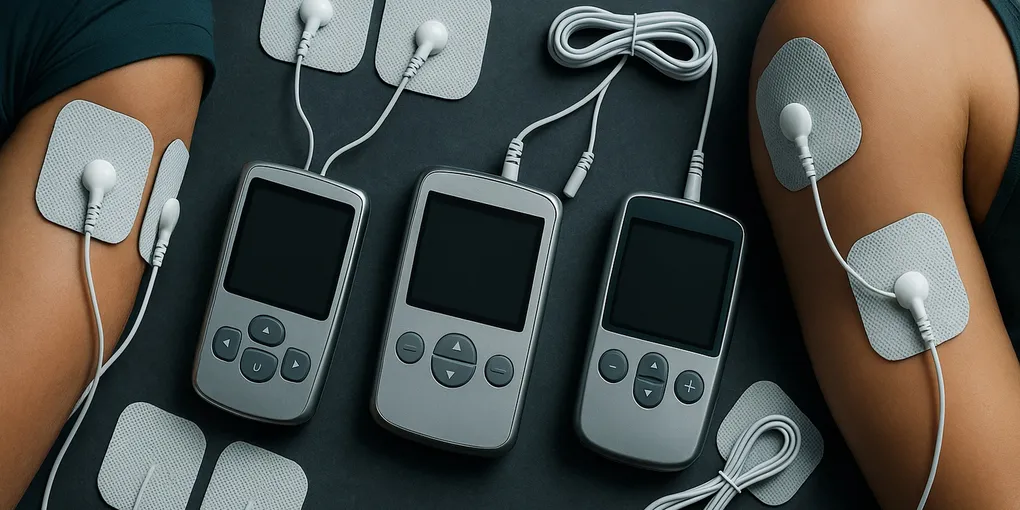

Best TENS Units for Pain Relief 2026

Transcutaneous electrical nerve stimulation (TENS) is one of the most well-studied non-pharmacological approaches to pain management. A TENS unit delivers low-voltage electrical currents through the skin via adhesive electrode pads, modulating pain signals before they reach the brain and stimulating endorphin release.

The mechanism: TENS works through two primary pathways. The gate control theory proposes that non-painful sensory input (the electrical impulses) closes the “gates” to painful input, preventing pain signals from traveling to the brain. Additionally, TENS stimulates the release of endogenous opioids — the body’s natural painkillers.

Meta-analyses support TENS efficacy for chronic musculoskeletal pain, postoperative pain, and primary dysmenorrhea. A 2022 Cochrane review found moderate-certainty evidence that TENS reduces pain intensity compared to placebo for chronic pain conditions.

We evaluated the top consumer TENS units on intensity range, program variety, build quality, battery life, and value. Here are our recommendations.

---

How TENS Units Work

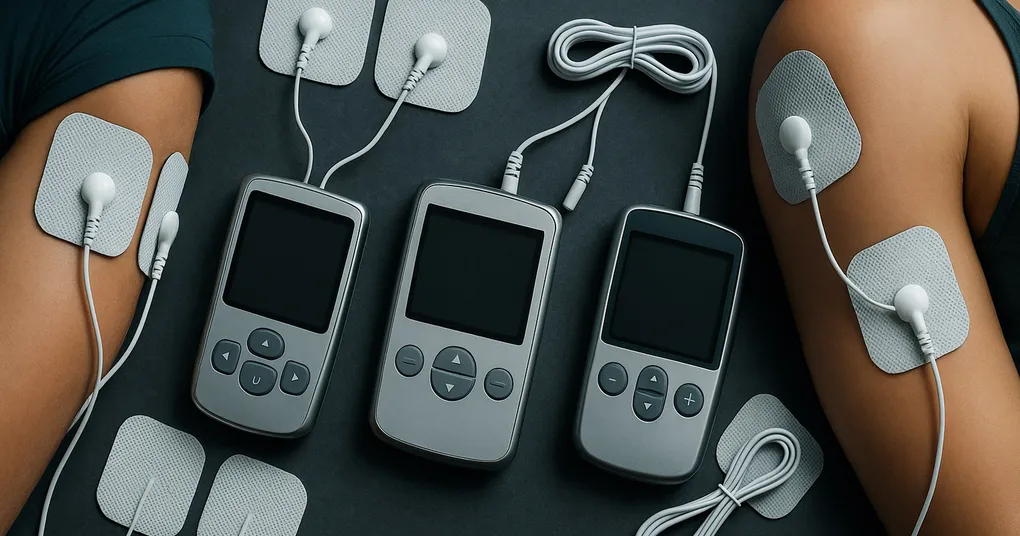

TENS units consist of a battery-powered control unit connected to 2–8 adhesive electrode pads. You place the pads on or around the painful area, select a program, and adjust intensity until you feel a strong but comfortable tingling or tapping sensation.

Key parameters:

• Frequency (Hz): Low frequencies (2–10 Hz) stimulate endorphin release. High frequencies (50–120 Hz) activate the gate control mechanism.
• Pulse width (μs): Wider pulses penetrate deeper tissue. Most units offer 50–250 μs.
• Intensity (mA): Higher intensity does not mean better results. The goal is a strong but comfortable sensory-level stimulation. Motor-level contraction (muscle twitching) indicates intensity is too high for pure TENS.

---

AUVON Dual Channel TENS Unit — Best Overall

AUVON has become the default recommendation in the consumer TENS space, and their dual-channel unit represents the best intersection of features, reliability, and price.

Key specs: Dual independent channels (allowing different intensities on left and right sides), 24 pre-set modes targeting specific body regions (shoulder, back, knee, etc.), 20 intensity levels, and a rechargeable lithium-ion battery lasting 8–10 hours.

Why it wins: The intensity range is exceptional for a sub-$40 device. At lower levels, it is gentle enough for sensitive areas like the neck. At higher levels, it penetrates deep into the lower back and glutes. The dual-channel design means you can treat two areas simultaneously — for example, both knees or lower back and shoulders.

The downside: The included electrode pads last 20–30 sessions before losing adhesion. Replacement pads are inexpensive, but it is a recurring cost. The 60-minute automatic shutoff can also be frustrating during long sessions.

---

iReliev Wireless TENS + EMS — Best Wireless

If cords between the control unit and electrode pads annoy you, the iReliev Wireless system is the solution. Two small wireless pods attach directly to the electrode pads and communicate with a handheld remote.

Standout feature: True wireless freedom. You can wear the pods under clothing during work or light activity without snagging wires. The system includes both TENS programs for pain relief and EMS (electrical muscle stimulation) programs for muscle recovery and mild strengthening.

Real-world use: The pods are small enough to be discreet but large enough to deliver meaningful intensity. Battery life is 3–5 hours per pod, and the charging case recharges them between sessions.

The tradeoff: At roughly $100, you are paying a premium for wireless convenience. The pods can occasionally lose connection during vigorous movement, so this is not ideal for use during exercise.

---

Omron Max Power Relief — Best for Deep Pain

Omron is the only consumer TENS brand with deep roots in clinical blood pressure monitoring and medical devices. The Max Power Relief unit lives up to its name with the highest output intensity of any unit we tested.

Key specs: Dual channels, 9 modes, 15 intensity levels, and a unique long-pad design that covers more surface area on the lower back. It runs on 2 AAA batteries rather than rechargeable lithium-ion.

Why it stands out: For deep, chronic lower back pain or large muscle groups (quads, hamstrings), the Omron’s intensity penetration is unmatched. The long pads distribute current over a broader area, reducing the “hot spot” sensation common with smaller pads at high intensity.

The downside: AAA batteries are less convenient and more expensive over time than rechargeable units. The mode selection is also more limited than competitors.

---

NURSAL Dual Channel TENS EMS — Best Value

At roughly $25, the NURSAL unit is the cheapest dual-channel rechargeable TENS we would recommend. It includes 16 modes, 20 intensity levels, and a small but readable LCD screen.

What you get: TENS pain relief plus EMS muscle stimulation modes. The package includes 8 reusable electrode pads, which is generous at this price point.

Real-world performance: The intensity range is adequate for mild-to-moderate pain but falls slightly short of the AUVON and Omron for deep tissue penetration. Build quality is functional but plasticky.

Bottom line: If you want to try TENS without a significant investment, the NURSAL unit is a low-risk entry point. If you find TENS effective, you may want to upgrade to the AUVON or Omron later.

---

Compex Edge 2.0 — Best for Athletes

The Compex Edge 2.0 is not just a TENS unit — it is a neuromuscular electrical stimulation (NMES) device used by physical therapists, athletic trainers, and professional athletes.

Key specs: 4 channels (allowing up to 8 pads simultaneously), 10 programs including active recovery, strength, endurance, and pain relief. The unit can induce actual muscle contractions for post-workout recovery and light strength training.

Why athletes choose it: After heavy training sessions, the “active recovery” program stimulates blood flow to fatigued muscles without additional mechanical stress. The “strength” program can maintain muscle activation during injury-induced immobilization (under physical therapy supervision).

The caveat: For simple pain relief, the Compex is overkill. The interface is complex, the price is high, and you do not need NMES if you just want to manage occasional back pain. This is a tool for serious athletes and rehab patients.

---

How to Use a TENS Unit Safely

TENS is generally safe, but misuse can cause skin irritation or discomfort.

Placement rules:

• Place pads on or around the painful area, at least 1 inch apart
• Never place pads directly on the spine, skull, throat, chest (front of heart), or over open wounds
• Do not use on numb areas where you cannot feel the sensation

Contraindications:

• Do not use if you have a pacemaker, implanted defibrillator, or other electronic implant
• Do not use during pregnancy (except under direct medical supervision for labor pain)
• Do not use over malignancies or areas of active thrombosis
• Do not use while driving or operating heavy machinery

Skin care:

• Clean skin before applying pads
• Rotate pad placement slightly between sessions to avoid skin irritation
• Replace pads when they lose adhesion or leave residue

---

The Bottom Line

• Best Overall: AUVON Dual Channel — Best intensity range and feature set for the price.
• Best Wireless: iReliev Wireless — Cord-free convenience with TENS + EMS.
• Best for Deep Pain: Omron Max Power Relief — Highest intensity for large muscle groups.
• Best Value: NURSAL Dual Channel — Entry-level price with rechargeable battery.
• Best for Athletes: Compex Edge 2.0 — Medical-grade NMES for recovery and performance.

For most people with chronic back pain, joint pain, or muscle soreness, the AUVON Dual Channel offers the best balance of power, features, and affordability.
